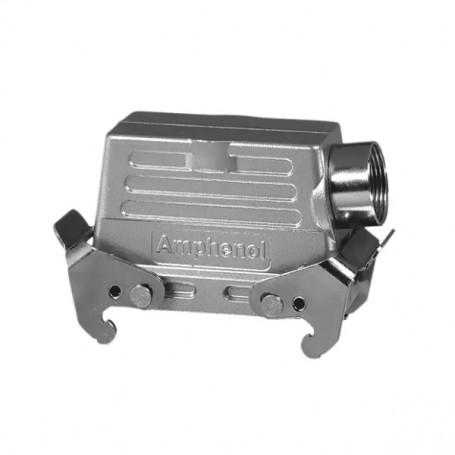

Amphenol C146 10R024 503 8, Carcasa conector cablu, intrare laterala M40, 2 leviere, profil inalt

Amphenol C146 10R024 503 8, carcasa pentru conector rectangular (104.27), intrare laterala M40, cu montare pe cablu. Accepta un bloc cu 24 contacte.

Quantity Unit price You Save
3 lei113.05 lei17.85
5 lei109.48 lei47.60
15 lei101.15 lei267.75
25 lei95.20 lei595.00
40 lei89.25 lei1,190.00

lei119.00 Tax included

lei100.00 Tax excluded

Delivery 1-2 working days
check Delivery from stock
compare Compara help_outlineAsk about product
Amphenol C146 10R024 503 8, Carcasa conector cablu, intrare laterala M40, 2 leviere, profil inalt

Amphenol C146 10R024 503 8, Carcasa conector cablu, intrare laterala M40, 2 leviere, profil inalt

Amphenol C146 10R024 503 8, carcasa pentru conector rectangular (104.27), intrare laterala M40, cu montare pe cablu. Accepta un bloc cu 24 contacte.

I accept privacy policy rules

Delivery from stock
Secure Online Payment
Description

AMPHENOL offers a fully integrated range of high-quality products for heavy duty industrial connections. Automation systems, railway, wind and marine equipment, machines, robots, energy production plants and applications are the key environments where AMPHENOL products guarantee performance and reliability.

A large number of enlosure versions are available with different combinations of component materials, each one suitable for a specific installation, normal environmental conditions, high temperature environments, aggresive environments or who require electromagnetic compatibility. The principal parts are made in the die cast aluminium alloy or in self-extinguishing thermoplastic. They are resistant to impact and strong mechanical stress. The coupling stability and protection against accidental opening are assured by single or double closing devices comprising levers, springs and pegs in galvanised steel or entirely in plastic. Sealing is assured by special gaskets that protect the contact groups inside the enclosuresagainst dust and aggressive agents. In general, the coupled enclosures with the appropriate user-selected connections guarantee IP44, IP65, IP66 and IP67 (IEC EN 60529) protection rating.

The inserts that can offer up to 84 poles in the same space as a standard 48-pole connector, thanks to its compact spring termination method which has allowed for the number of poles to be increased without changing the overall dimensions. The screw termination inserts can house conductors up to 4 mm2. The mixed head screw lets you use a flat or Phillips head screw.

Data sheet
C14610R0245038
26 Items
Series
Amphenol C146 E
Product type
Coupling hood, 2 Levers
Coupling mode
2 Levers
Enclosure size
104.27
Cable entry point / Thread
intrare laterala / M40
Operating temperature range (°C)
-40°C ...+125°C
IP degree of protection
IP67
