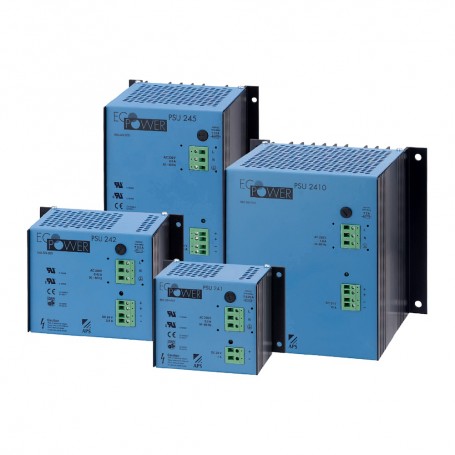

APS EcoPower PSU-241 Industrial Power Supply (230VAC - 24VDC/1A)

Reliability

Increased safety for human and installation and a high lightning immunity were the primary development goals of the EcoPower PSU family.

As a result, EcoPower PSU effectively protects your installation and devices against mains disturbances and overvoltage peaks. Extended durability and much lower breakdown risk are the direct benefit of selecting EcoPower PSU.

• Lightning protected input
• Max. +20° C temperature increase (housing)
• Proven 50 Hz technology for rough environments
• Long operational life and availability
• MTBF 500 000 h

Immunity

Voltage peaks and high frequency interferences are well known sources of trouble in electrical installations.

EcoPower PSU effectively filters and dampens such noise. It meets the EMI standards and it even achieves a higher-grade radio interference class that makes it suitable for building automation and living area applications.

EcoPower PSU stands for a troublefree service to the end-user.

• Function as a mains filter
• Radio interference class B
• High EMC immission immunity
• CE conformity according to EMC regulations

Approved safety

The robust aluminum housing and its protection against accidental contact make EcoPower a favourite for both living area and rough industrial applications.

You benefit from approved safety for human and installation by choosing EcoPower PSU.

• Safety approvals CE, GS, UL /ULC
• SELV output (safety extra low voltage circuit)
• No high temperature resistant cable required for wiring
• Protection class IP 20
• Industrial usage up to pollution class 3
