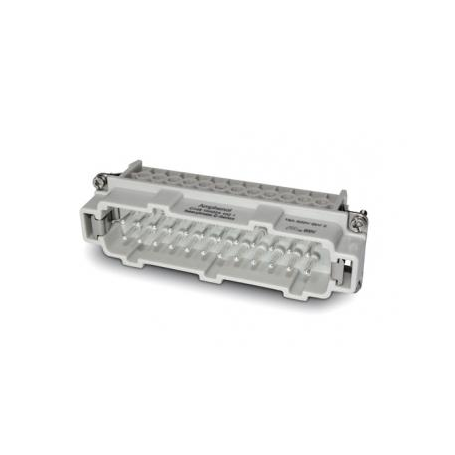

Amphenol C146 10A024 002 1, Bloc 24 contacte tata, conectare cu surub
zoom_out_map
chevron_left chevron_right

Amphenol C146 10A024 002 1, Bloc 24 contacte tata, conectare cu surub

Amphenol C146 10A024 002 1, bloc cu 24 contacte +GND (104.27), tata. Permite conectarea cu surub a firelor conductoare.

Quantity Unit price You Save
3 lei71.25 lei11.25
5 lei69.00 lei30.00
15 lei63.75 lei168.75
25 lei60.00 lei375.00
40 lei56.25 lei750.00

lei75.00 Tax included

lei63.03 Tax excluded

Delivery 1-2 working days
check Delivery from stock
compare Compara help_outlineAsk about product
Amphenol C146 10A024 002 1, Bloc 24 contacte tata, conectare cu surub

Amphenol C146 10A024 002 1, Bloc 24 contacte tata, conectare cu surub

Amphenol C146 10A024 002 1, bloc cu 24 contacte +GND (104.27), tata. Permite conectarea cu surub a firelor conductoare.

I accept privacy policy rules

Delivery from stock
Secure Online Payment
Description

AMPHENOL offers a fully integrated range of high-quality products for heavy duty industrial connections. Automation systems, railway, wind and marine equipment, machines, robots, energy production plants and applications are the key environments where AMPHENOL products guarantee performance and reliability.

A large number of enlosure versions are available with different combinations of component materials, each one suitable for a specific installation, normal environmental conditions, high temperature environments, aggresive environments or who require electromagnetic compatibility. The principal parts are made in the die cast aluminium alloy or in self-extinguishing thermoplastic. They are resistant to impact and strong mechanical stress. The coupling stability and protection against accidental opening are assured by single or double closing devices comprising levers, springs and pegs in galvanised steel or entirely in plastic. Sealing is assured by special gaskets that protect the contact groups inside the enclosuresagainst dust and aggressive agents. In general, the coupled enclosures with the appropriate user-selected connections guarantee IP44, IP65, IP66 and IP67 (IEC EN 60529) protection rating.

The inserts that can offer up to 84 poles in the same space as a standard 48-pole connector, thanks to its compact spring termination method which has allowed for the number of poles to be increased without changing the overall dimensions. The screw termination inserts can house conductors up to 4 mm2. The mixed head screw lets you use a flat or Phillips head screw.

Data sheet
C14610A0240021
3 Items
Series
Amphenol C146 E
Product type
Contact block
Enclosure size
104.27
Gender
Male
Maximum current /contact (A)
16A
Number of contacts
24
Wire cross-section (mm²/AWG)
0,5 .. 4mm² / AWG 20 .. 12
Operating temperature range (°C)
-40 °C ... +125 °C
IP degree of protection
IP20 (fara carcasa), IP65 .. IP69 (cu carcasa)
