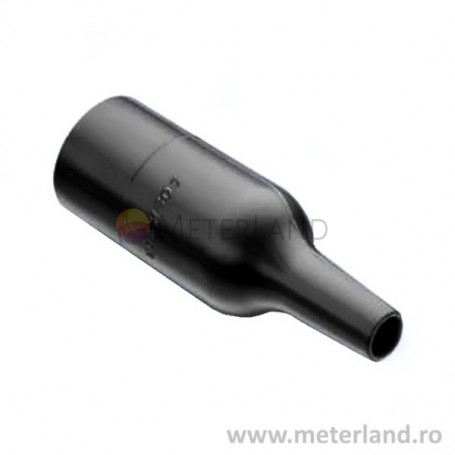

Raychem 202K121-25/225-0, straight heat shrink boot, adhesive pre-coat

Raychem 202K121-25/225-0, heat shrink boot, 180°, size 202, lipped, adhesive pre-coat, operating temperature range-75 – 150 °C [-103 – 302°F], long-term fluid exposure at high temperatures.

Quantity Unit price You Save
5 lei55.20 lei24.00
15 lei51.00 lei135.00
30 lei48.00 lei360.00

lei60.00 Tax included

lei50.42 Tax excluded

Delivery 1-2 working days
check Delivery from stock
Delivery from stock
Secure Online Payment

Raychem heat-shrinkable molded parts in -25 material are designed to be used in conjunction with other System 25 components such as DR-25 tubing and S1125 adhesive, providing a complete cable harness system capability.

-25 parts have been specifically formulated and designed to provide optimum high-temperature fluid resistance and longterm heat resistance.

This unique balance of properties makes -25 parts particularly suitable for sealing and strain relief at connector-cable terminations and cable-tocable transitions on military vehicle cables and harnesses. Available in a wide range of configurations, -25 parts will operate from -75°C to 150°C [-103°F to 302°F] for long periods.

The standard color is black.


• Optimized interior geometry speeds installation time

• Faster recovery


• -75°C to 150°C temperature range

• Resists most common military fuels, oils, and greases

• Abrasion resistant


• Part of System 25 harnessing components

• Meets the requirements of MIL-STD-2003, MIL-I-81765/1A, ABS, DNV, Lloyd etc.


• Military ground systems

• Aerospace

• Marine

Data sheet
RAY 202K121252250
20 Items
Product type
Heat Shrinkable Lipped Boot, Straight
Fluid-resistant elastomer
Operating temperature range (°C)
-75 ... +150 °C
H Dia. as supplied (mm)
24 mm
H Dia. (Max) , after unrestricted recovery (mm)
10.4 mm
J Dia. (Max) , after unrestricted recovery (mm)
5.6 mm (0.22")
Adhesive Pre-Coat
